USER MANUAL:

https://www.dropbox.com/s/egq76lfvf4dk4ng/KSN11C%20MANUAL.pdf?dl=0

Introduction:

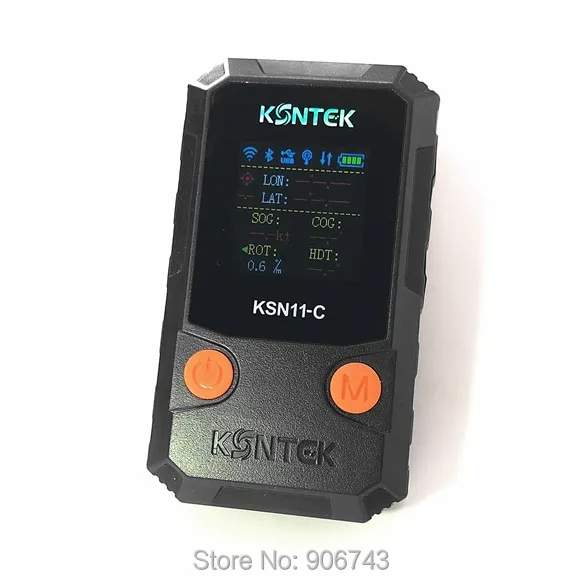

KSN11-C is the latest version of our product thatWiFi&Bluetooth&USBconnections with built-in ROT GYRO sensor.there are some of main features on KSN11-C. built-inGPS receiverandStableROT sernsor,Removable batterymore than28hrsworking,built-in anAutomaticcorrector for polarity reversed issue (TX+- or RX+-)in some of ship's AIS pilot plug socket,Separated cable between ship's AIS pilot plug and unit(connect to unit by Micro USB),Dimentions 95*54*26 mm and net weight 160g ,portable design more easy to put in your pocket.

New unit still provides an easy way to receive data from the vessel Automatic Identification System (AIS Class A Class B) device and straight to their own ECDIS PC or PPC,iPhone,iPad which built-in a W-lan adapter .KSN11-C sends out all relevant information such as AIS targets, ship's Position, Heading, SOG,COG and ROT(rate-of-turn) over TCP/IP protocol. Suitable for use withSEAiq Pilot (recommended)  ,Transas Pilot PRO,iSailor or othersoniPad; AisPilot on Android.

Features:

• • IMO Standard AIS Pilot Plug interfaces(AMP) for mariners;

  • Compatible with IEEE 802.11b/g/n;

  • LCD true color display for working status;

  • Built-in ROT sensor,Accuracy 0.5°/m,Resolusion 0.1°/m;

  • Built-in GNSS,Concurrent reception of up to 3 GNSS (GPS,Galileo,BeiDou);

  • HDOP:Autonomous<2.5m average;SBAS<2.0m average;Speed<0.1m/s;

  • Built-in an automatic sensor to correct polarity reversed issue (TX+- or RX+-) in some ship's AIS pilot plug socket;

  • WiFi 2.4G,allows Max 3 clients to access at same time;

  • Bluetooth EDR&BLE dual mode,support version.2.0~4.0 Class2;

  • USB Serial port,baud rate 38400bps;

  • Wireless receiving AIS datas from AIS Pilot Plug,Range 300meters(Request KSN11-F);

  • Removable battery 28~40hrs continue working,battery status display on App(Supported by SEAiq);

  • Own GPS&ROT output at NMEA sentence together with ship's AIS at same time;

  • MENU selection on screen for functions ON/OFF;

  • Water proof IP55;

  • Net weight 160g with battery;

  • Portable design,Dimensions L*W*H :94mm*54mm* 26mm;

  • Working temperature:  -25°~85°

  • WiFi Antenna: 4db

  • CE, FCC, Certificated;

Package Content:

• • AIS Pilot Plug KSN11-C Unit......1pcs

  • Power Adapter Supply: Input: AC110v~240V 50/60Hz, Output: DC5V 1.2A......1pcs

  • Micro USB for charger......1pcs

  • AIS pilot plug AC1 cable......1pcs

Warranty Policy:

The AIS PILOT PLUG WiFi units are developed and manufactured to meed high technical requirements and user demands,if use correctly and maintained regularly,the unit should provide you with several years of operation and be a very useful product.

• • Seller acknowledges that at delivery,each unit has been tested and found operational.

  • The warranty is not valid if: the instructions for open cover have not been followed,incorrect useage has caused faults,misuse and incidental,the product has been modified,or serviced by non-authorized individual.

  • The warranty includes replacement or repair of a faulty unit due to flawed components or errors relating to the production of the product.

  • Seller agrees to repair or replace any faulty unit at no cost during a period of Six ( 6 ) Month from day of purchase,It does not include return shipment cost.

  • Free of Shipping with term DAP to Worldwide!
