APP:CamHi
5MP IP DV Camera adopts highly integrated GK7205V300 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard ONVIF Protocol, support RTSP, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
Chinese, English, French, German, Italian, Spanish, Russian, Korean, Polish
Model:H35WG4 |
|
Operating system |
embedded LINUX |
Main processor |
GK7205V300 |
Image Sensor |
SONY IMX335 1/2.8" Ultra Low Illumination CMOS Sensor |
Day and night mode |
Support |
Compression standard |
|
Compression standard |
Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
Audio compression algorithm |
G.726/G.711 |
Compressed transport stream |
32Kbps-6144bps, can be customized, default 1536Kbps |
Images |
|
Maximum image size |
5MP (2560*1920) |
Sharpness |
First stream:5MP (2560*1920) |
D1 (704*576 or 640x480), QQ720P (800x448 or 640x352) can be set |
|
Video frame rate |
Low bit stream processing technology |
Character overlay |
Support OSD name,time and date information overlay |
Image settings |
Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
NetworkFunction |
|
Storage function |
Supports up to 128G Micro SD card storage and supports scheduled video storage |
Motion detection |
Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage |
alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
Network Protocol |
Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
Access Protocol |
Supports ONVIF 2.4 Protocol |
Interface |
|
Audio input |
support |
Audio output |
Support |
LAN interface |
RJ45 10Base-T/100Base-TX, 4G and WIFI AP 2.4GHz WIFI/802.11b/g/n wireless, and support wifi hotspot, your network device can connect to the WIFI of the camera to share 4G network. |
IR night distance |
support |
ZOOM |
240x zoom (30xoptical zoom and 8x digital zoom) |
waterproof level |
indoor |
WIFI |
support WIFI connect |
Working temperature |
-30 to+85Celsius |
power |
DC12V 1A |
Working Humidity |
-10-95% |
Command and Instructions:
1.The lens curve learning command: 253 + set + 252 +call
(The distance between the camera and the object must be greater than 50meters)
2.Minimum focus distance setting:Set command: 251 + set + X + call.
When X = 1, the minimum focusing distance is about 1.5 meters;
when X = 2, the minimum focusing distance is about 3 meters;
when X = 3, the minimum focusing distance is about 6 meters;
when X = 4, the focusing distance is infinity.Default X = 2
3. Focus mode setting:Set command: 250 + set + X + call.
When X = 1, the focus will only be triggered when the zoom movement is triggered;
when X = 2, any change in the pan, tilt, left, right, and zoom modes will trigger the movement to focus;
when X = 3, the automatic focusing mode, In any case, the movement will automatically focus. Default X = 2
4. Modification Digital ZOOM:
If ip address of camera is 192.168.188, Please open the browser and enter this address:
http://192.168.1.88/cgi-bin/hi3510/param.cgi?cmd=setmaxezoom&-maxezoom=10
10X Digital zoom when maxezoom=10; digital zoom close when maxezoom=1
Maxezoom value can be equal to any value from 1-10, representing the multiplier digital zoom of the number.
After the command is executed, please power off andrestart the camera. digital zoom to take effect
5.ZOOM OSD display and not display: 225 + call + X + call,
when X = 1, the ZOOM timesdisplay is on;
when X = 2, the zoom timesdisplay is off, the default X =1
6.Modify the control protocol method (you need to restart the movement to take effect after modification):
254+set+1+set: VISCA protocol (default) (PELCO-D, baud rate: 9600, address code: 1/255)
254+set+2+set: PTZ serial port protocol (PELCO-D, baud rate: 9600, address: 1
7. The movement supports the standard Visca protocol with a baud rate of 9600.
The address codes of the dome camera is 1
Humanoid recognition algorithm based on deep learning.Based on Huawei's deep learning humanoid recognition algorithm V2.0,
itprovides accurate humanoid recognition, providing continuous humanoid coordinates for the camera and smooth tracking of the camera.
4G router menu display

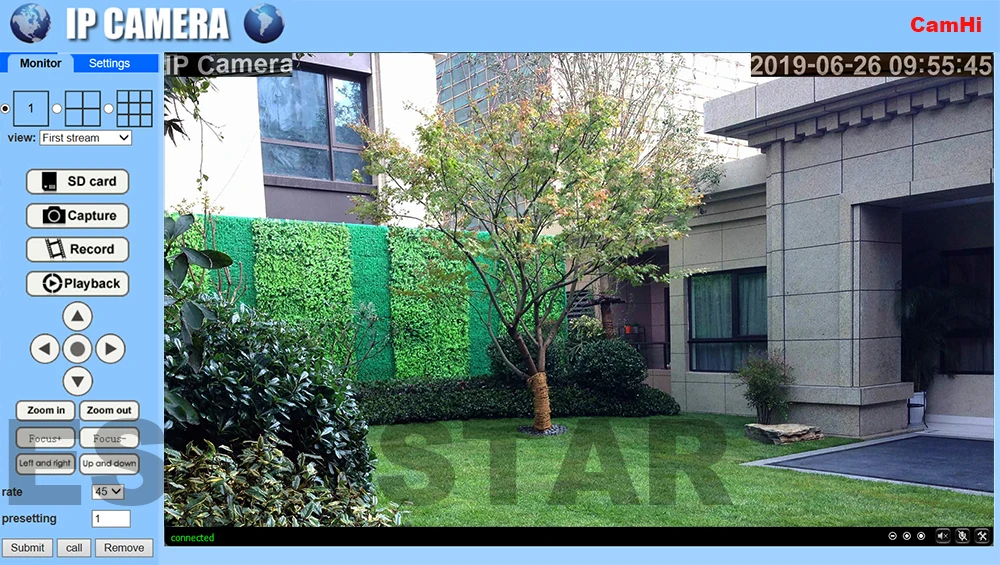

UI Introduction The device supports webUI function. After successfully connecting the device to a computer or mobile phone, enter 192.168.2.1
in the browser address, enter the password admin, and then click to confirm login; There is a language selection in the upper right corner, which defaults to Chinese and supports English.
After logging in, you can make a series of settings for the router.
1) Home page: Display device connection status, signal strength, operator, card status, WiFi access count, IP address, software version, etc.
2) APN setting:
3)VPN setting:
4）SMS function: You can send SMS to other mobile phone users through the camera's 4G module, and other mobile phone users can also send SMS to the 4G router.
5)Advanced Settings
Firwall：
6）SNTP
7)WIFI setting
Humanoid recognition algorithm based on deep learning.
Based on Huawei's deep learning humanoid recognition algorithm V2.0, it provides accurate humanoid recognition, providing continuous humanoid coordinates for the camera and smooth tracking of the camera.
1 X Tail cable for LAN and Power
