NOTE:
Please do not update the official firmware of darthcloud, it will cause problems such as wrong indicator lights and handle failures!The firmware used by this Blueretro converter is a recompiled version, which is different from the official darthcloud firmware.
If you need to update, go to this link to download the firmware:https://github.com/RetroScaler/NGC-BlueRetro
Note:
Do not connect multiple switch controllers, mix with other brands of controllers, otherwise high latency or disconnection issues may occur

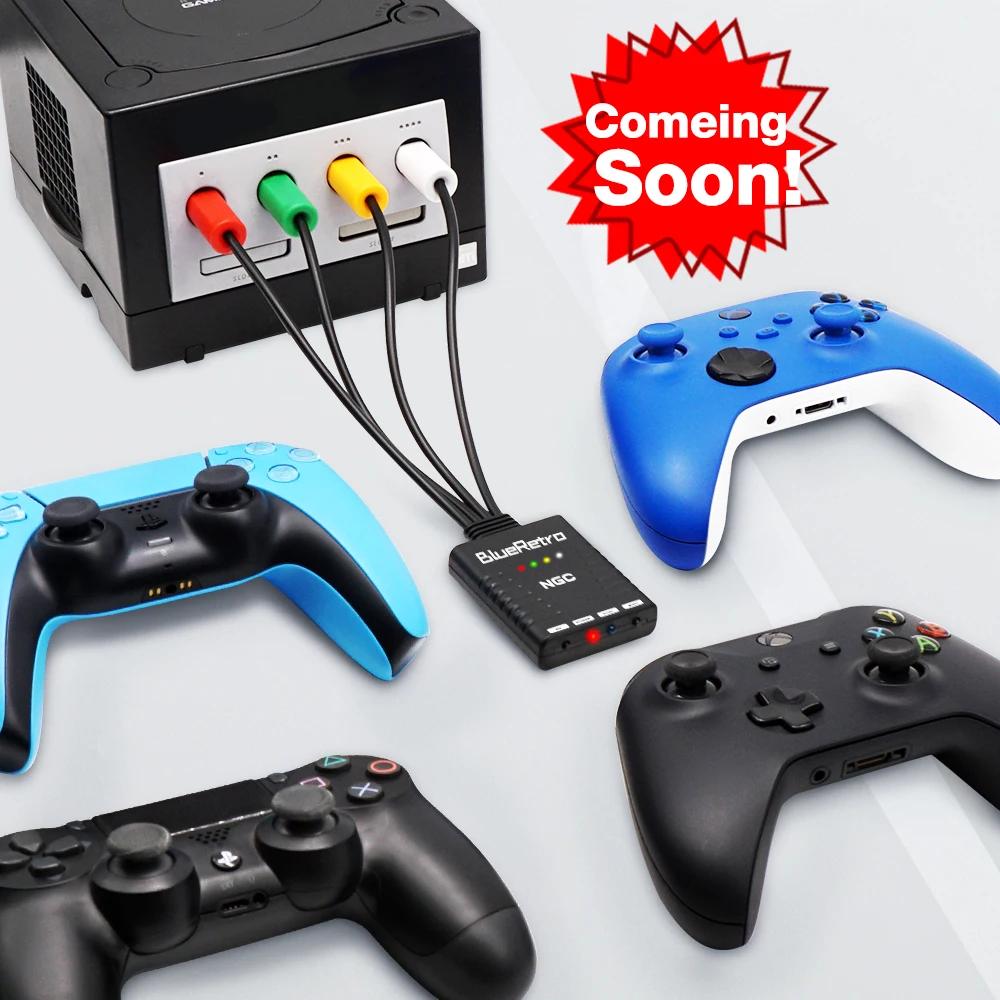

BlueRetro, a multiplayer Compatible-Bluetooth controllers adapter for Gamecube consoles, is an open source project based on darthcloud. It uses the popular ESP32 chip.
It can support original Support PS3 / PS4 / PS5 / Xbox One S / Xbox Series X|S / Wii / Wii U Pro / Switch Pro/ Switch Joycon / 8bitdo / Retro-Bit Wireless Controller, etc.This new adapter allows for the use of up to 4 connected Bluetooth controllers.
1) Only suitable for Gamecube console.
2) Up to 4 Bluetooth controllers can connected paired simultaneously.
3) Multi-function reset button, Support firmware updatable.
4) Almost zero latency, the PS4&PS5 controller less than 6ms of latenc using Blueretro.
5) Compatible Xbox One S/Xbox Series X|S /Wii / Wii U Pro/Switch Pro / Switch Joycon
/8bitdo /Retro-Bit PS3/ps4/ps5 Wireless Controller.
6) The key value of the buttons can be configured through the web bluetooth port
of the Google Chrome.
RED: no.1 controller
Green: no.2 controller
Orange: no.3 controller
White: no.4 controller
BlueRetro LED Status:
Red LED FULLY ON：Power on
SYNC LED FULLY ON: Bluetooth failure
SYNC LED OFF: Bluetooth connected successfully
SYNC LED pulsing: Searching wireless controller
RESET Button: reset blueretro
PAIR Button:
-Short press: Disconnect all Bluetooth devices and start the new pairing.
- 3 sec hold: Enable Bluetooth inquiry mode (new pairing).
-10 sec hold: Restore to default configurations and clear BT pairing keys.
Q1: Can I use two BluerRetro on the same console? One for each controller?
A1: Yes, you can.
Q2：Why is the controller disconnected from the console Bluetooth?
A2：Insufficient power of the controller will cause the Bluetooth connection to be disconnected automatically.

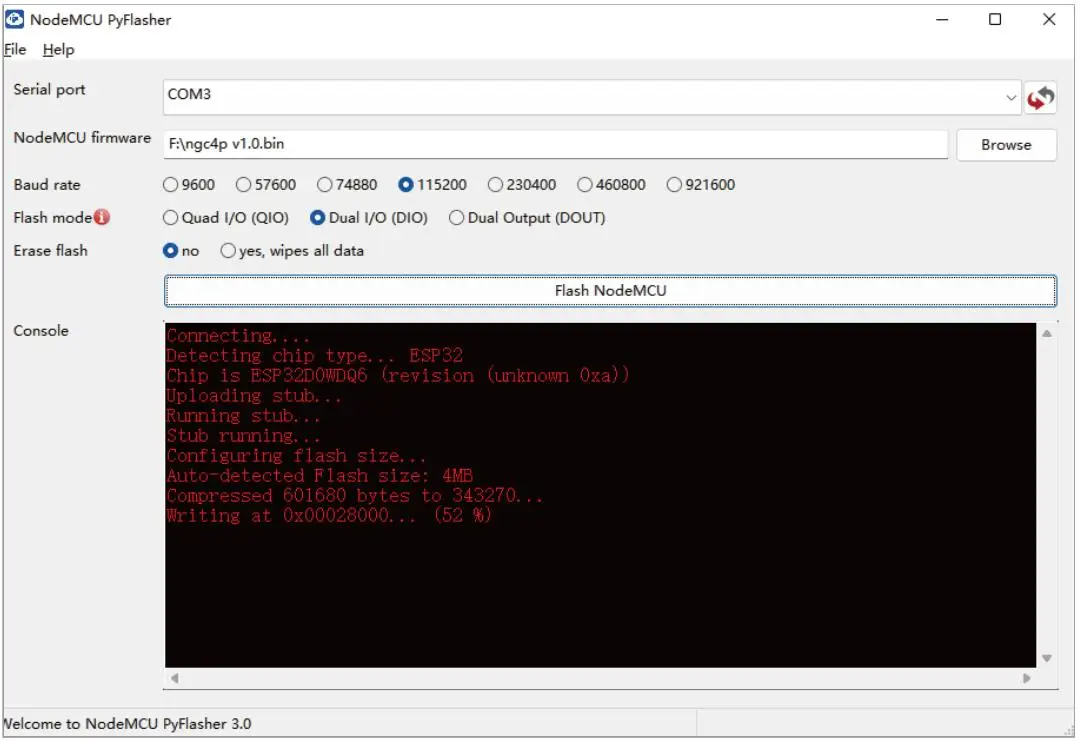

Firmware update：
1) Download the NodeMCU-PyFlasher and Blueretro firmware.(https://github.com/RetroScaler/NGC-BlueRetro/releases/tag/blueretro)
2) Execute NodeMCU-PyFlasher.exe .
3) Connect Blueretro to computer using type-c cable. Select proper COM portfor your computer. And choose the latest BlueRetro firmware.
4) Click Flash NodeMCU. Then wait for the burning to complete.
